R-Quartz

R-Quartz
Theoretical working capacity: 3425 m2/h

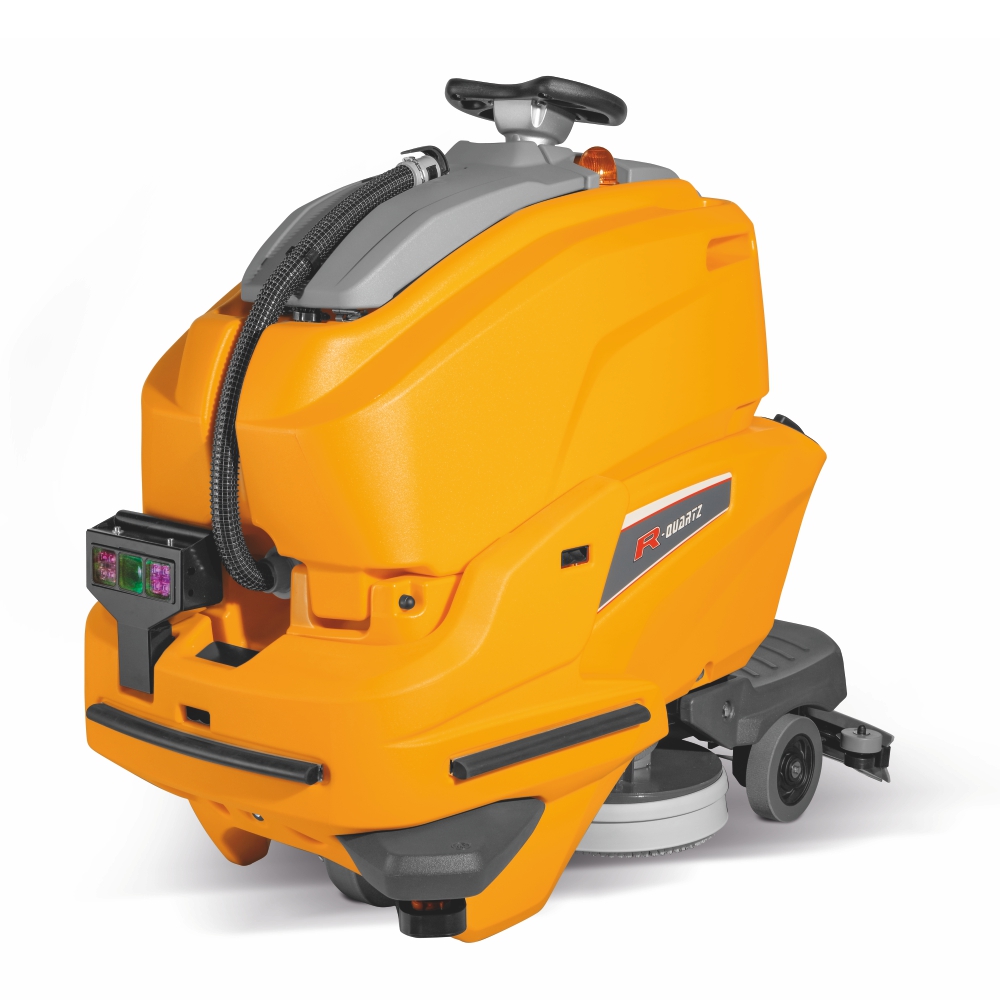

With a clean path of 685mm, R-Quartz is a scrubber for the medium-large surfaces that can work on both manual and autonomous mode.

PRODUCT SPECIFICATIONS

Ride-on machine with traction Ride-on machine with traction
Power supply 24V/330Ah Power supply 24V/330Ah
Cleaning width 685mm Cleaning width 685mm
Brushes pressure adjustable max. 52kg Brushes pressure adjustable max. 52kg
Battery autonomy 6h Battery autonomy 6h
Solution tank / recovery tank 100/106l Solution tank / recovery tank 100/106l
Disc brushes 2x355mm Disc brushes 2x355mm
Brushes speed 160rpm Brushes speed 160rpm
This model in fact provides the innovative possibility to work without the constant presence of the operator. Thanks to its two modes it is possible to perform the cleaning by repeating a route that was previously memorized by the machine, or to clean the inner area of a perimeter previously run by the operator. The lithium batteries autonomy allows to operate independently for more than 4 hours with just one change of the detergent solution.
The advanced technology developed for this model, combined with a 3D camera and two other types of sensors, allows R-Quartz to run completely safe during the cleaning operation by avoiding the obstacles, even the unexpected ones, and stopping when avoiding is not possible such as in proximity of walls or barriers.
From the handy 7’’ touchscreen display on the dashboard, to the other standard and autonomous functions, through the 3S and 3SD systems, it is possible to adjust the water and detergent carriage depending on the work that is needed to be carried out, in order to grant an environment friendly solution that also takes care of the operator money saving.
R-Quartz is equipped with the Telematics system in order to monitor the machine functions and its real yield, granting a real time control of the performances.

- Squeegee width: 685 mm
- Brushes motor: 2x350 Watt
- Maximum gradient: 10%
- Suction motor: 570 Watt
- Suction vacuum: 160 mbar
- Detergent tank: 7 l
- Machine dimensions:

L: 1634 mm
W: 922 mm
H: 1350 mm
- Machine weight (with batteries Li): 340 kg
- Traction motor: 500 Watt
- Movement speed: 4.5 km/h
- Battery compartment x2: L: 532 mm
W: 187 mm
H: 325 mm
- Class: III
- Protection level: IP 23
- Loudness: liv 1: 67 dB (A)
liv 2: 70 dB (A)
liv 3: 76 dB (A)

R-QUARTZ official video Adiatek
