coral 65m

coral 65m
Theoretical working capacity: 3300 m2/h

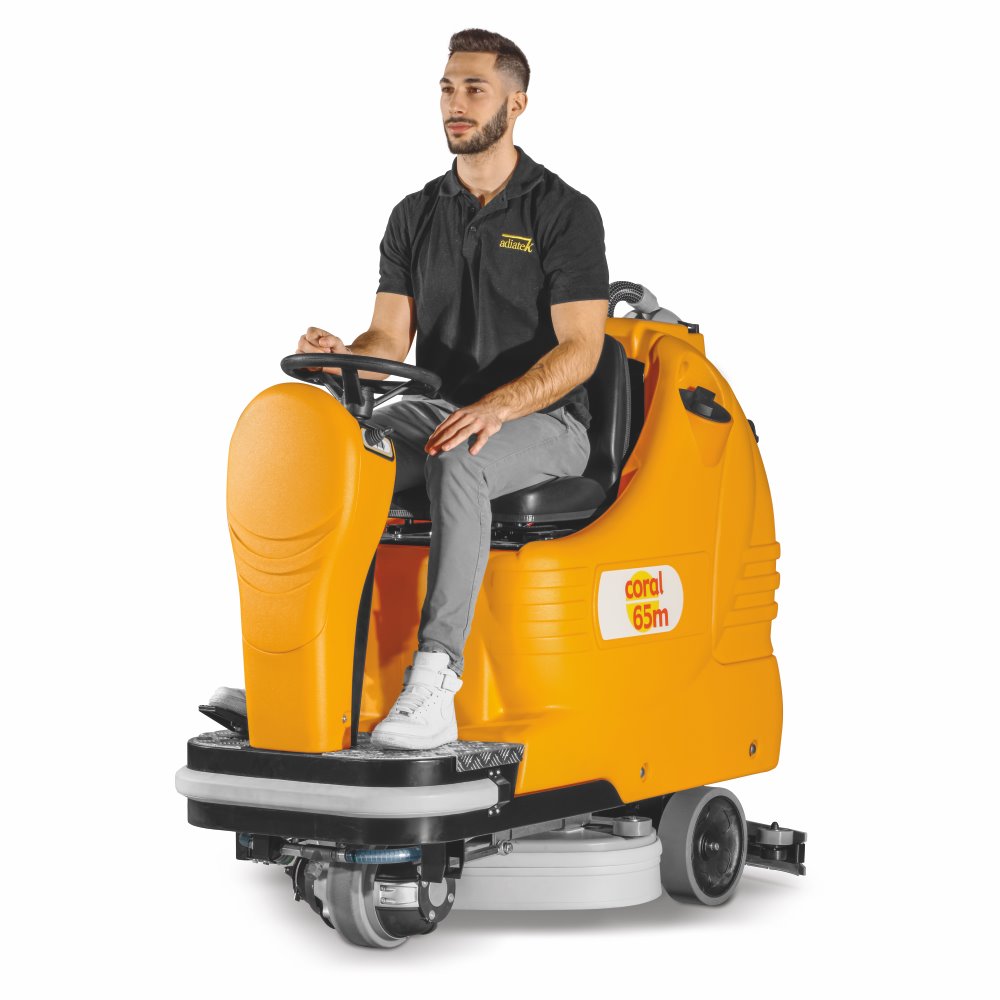

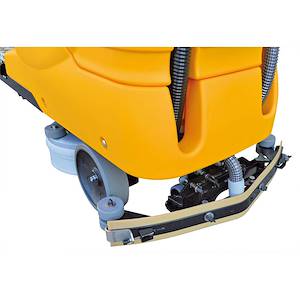

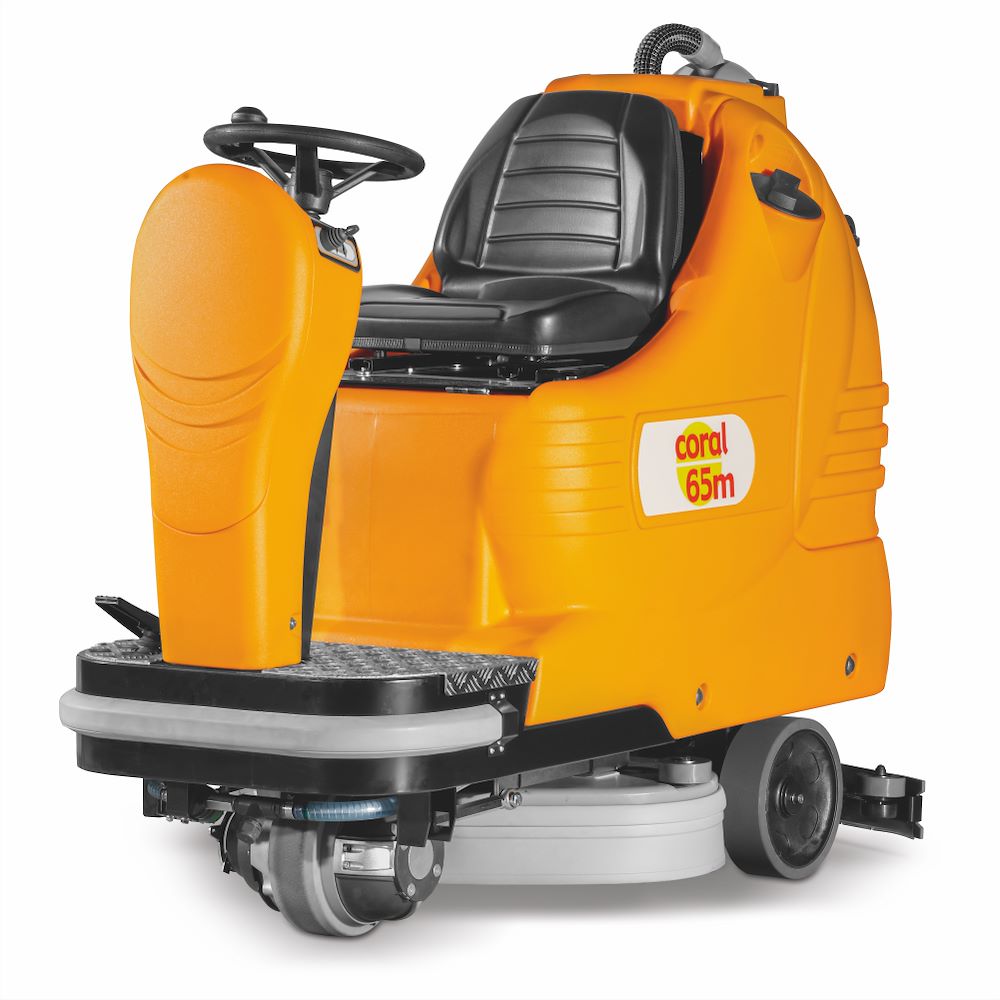

Ride-on scrubbing machine, compact and very easy to handle, with two counter-rotating brushes and a working width of 65 cm. Even if the squeegee is very short, it guarantees perfect drying results in any situation.
Request information

PRODUCT SPECIFICATIONS

Ride-on machine with traction Ride-on machine with traction
Power supply 24V/240Ah Power supply 24V/240Ah
Cleaning width 660mm Cleaning width 660mm
Brushes pressure adjustable max. 60kg Brushes pressure adjustable max. 60kg
Battery autonomy </br>3-4h Battery autonomy
3-4h
Solution tank / recovery tank 100/105l Solution tank / recovery tank 100/105l
Disc brushes 2x345mm Disc brushes 2x345mm
Brushes speed 190rpm Brushes speed 190rpm

According to 196/03 law, the collected data will be only used to inform customers about Adiatek S.r.l. activities and will be considered secret. Data introduction is optional, but we can’t give services without personal information. Owner of data treatment is Adiatek S.r.l. - Via Monte Pastello 14, 37057 San Giovanni Lupatoto (Verona) - Italy.

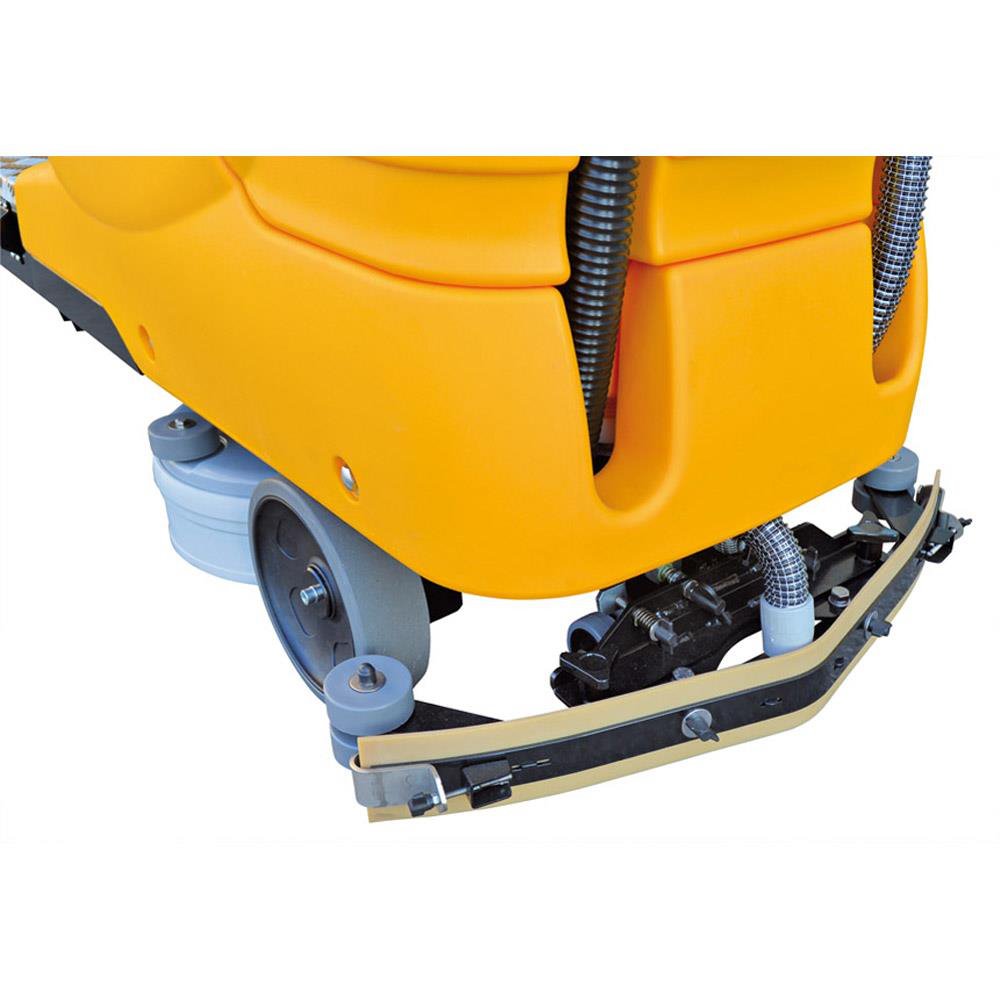

Ride-on scrubber, compact, 24V batteries powered and equippedwith a double counterrotating brushes brush base with two geared motors and a cleaning width 65 cm, even if it is very short the squeegee grant a perfect drying in every situation.

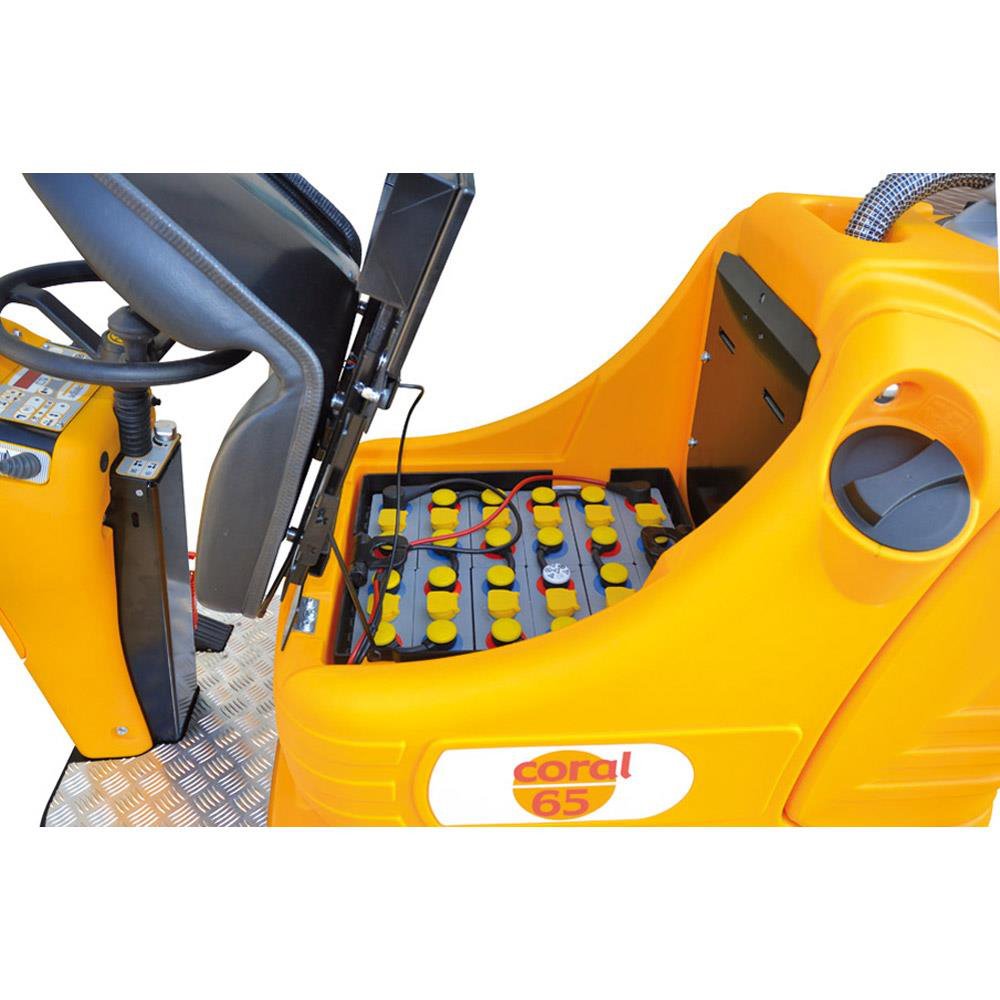

The polyethylene tanks are very thick and ensure a 100 liters detergent solution capacity. The machine works with a 24V voltage and the battery pack has a maximum capacity of 240 Ah(5) ensuring a 4 hours autonomy.

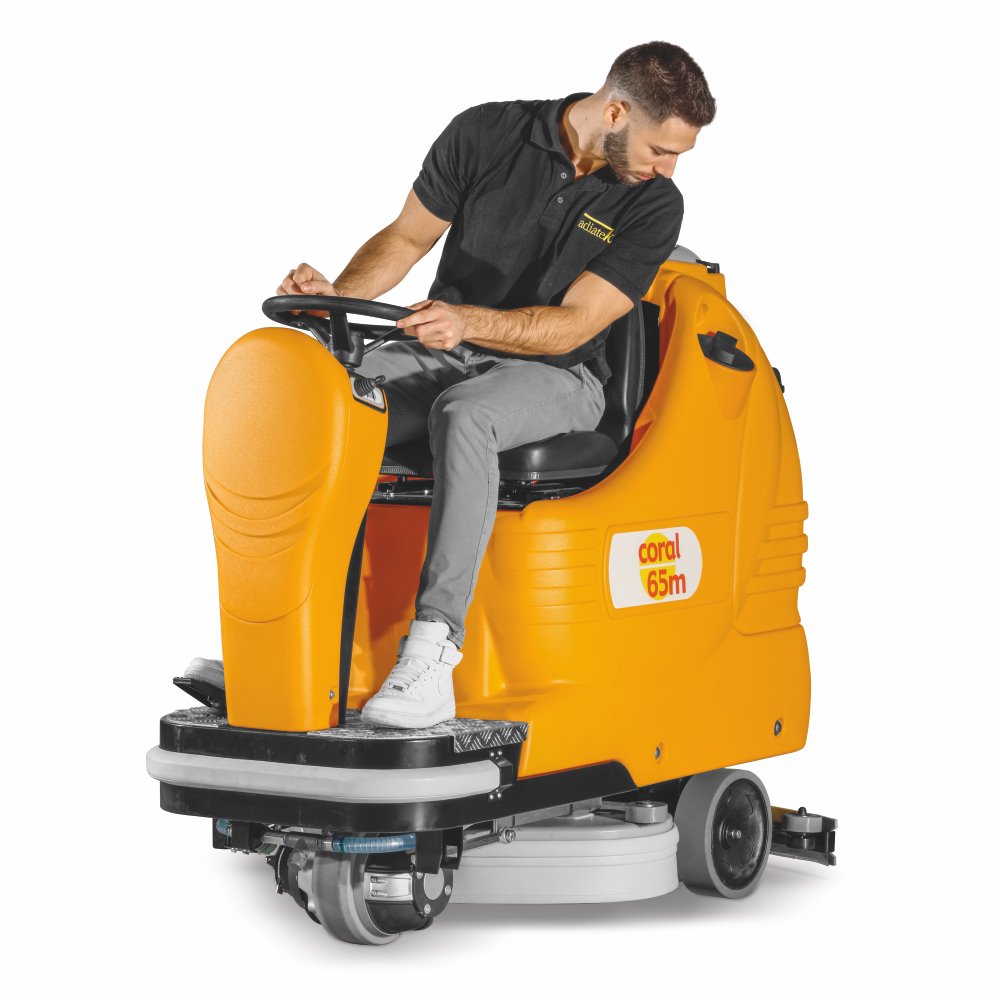

The driving seat is ergonomic, provided with digital controls and it indicates the setting and the battery level, the hours the machine worked and the brush pressure set.

Click here to download the product sheet
- Larghezza tergipavimento: 860 mm
- Motore spazzole: 650 Watt
- Tipo di avanzamento: automatico
- Pendenza superabile: 10%
- Motore aspirazione: 580 Watt
- Depressione aspirazione: 160 mbar
- Dimensioni macchina: L: 1520 mm
  W: 730 mm
  H: 1320 mm
- Peso macchina: 238 kg
- Motore trazione: 600 Watt
- Velocità avanzamento max: 5 km/h
- Vano batterie: L: 520 mm
  W: 415 mm
  H: 385 mm
- Classe: III
- Grado di protezione: IP 23
- Rumorosità: <70 dB (A)

Quick guide

There you can download the machine’s quick guide.
We always recommend to read the complete Use&Maintenance manual.

coral 65m_IT quick guide

coral 65m_EN quick guide

coral 65m_F quick guide

coral 65m_D quick guide

coral 65m_E quick guide



Use & Maintenance manual

There you can download the Use & Maintenance manual.

Use & Maintenance_IT

Use & Maintenance_GB

Use & Maintenance_F

Use & Maintenance_D

Use & Maintenance_E
