Quartz

Quartz 80

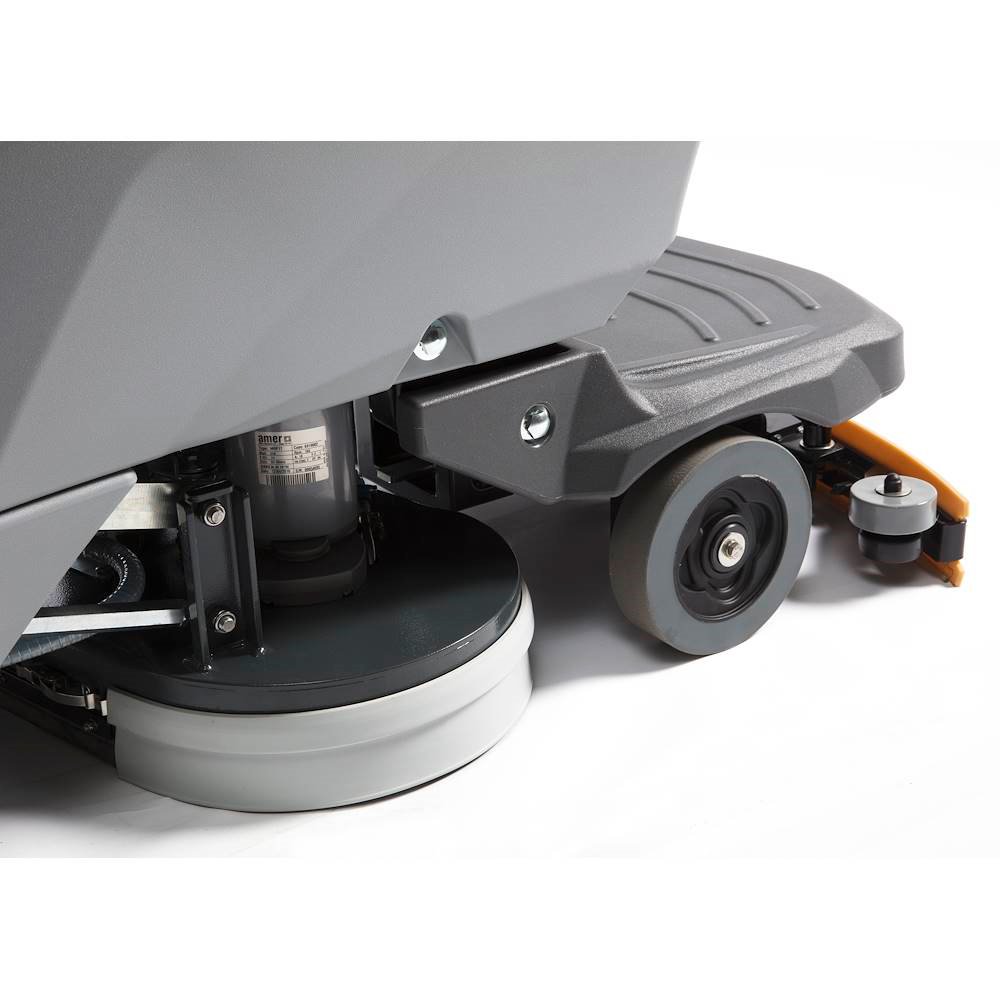

The new generation Adiatek quartz scrubber machine provides a flexible and compact solution from medium to big size areas with a working capacity up to 4710 m² /h. Deliver the comfort and performance of a ride on machine cleaning with unmatched maneuverability and visibility. The battery powered stand-up scrubber offers unbeatable cleaning performances featuring two 350W brush motors. This floor scrubbers is provided with a tough roto-molded polyethylene body and a 100 liters solution tank. The detergent solution flow rate can be adjusted directly from the dashboard in order to be able to switch from high to low without stopping from cleaning.

- Total Ergonomic design in order to be productive and easy to get on and off.

- 360 degrees visibility and total access around the machine.

- Large solution tank capacity and easy control of the detergent solution flow rate.

- Automatic cut out if operator steps off the machine.

- Large recovery tank opening designed for an easy internal cleaning.

Theoretical productivity: 4710 m²/h

Characteristics

Ride-on machine with traction

Power supply 24V/210Ah

Cleaning width 785mm

Brushes pressure adjustable max.57kg

Battery autonomy 4-5h

Solution tank / recovery tank 100/106l

Disc brushes 2x406mm

Brushes speed 160rpm

Technical data

Squeegee width

990 mm

Brushes motor

2x350 Watt

Motion system

automatic

Maximum gradient

10%

Suction motor

570 Watt

Suction vacuum

160 mbar

Machine length

1540 mm

Machine width

860 mm

Machine height

1388 mm

Machine weight w/o battery

218 kg

Traction motor

500 Watt

Maximum forward speed

5 km/h

Batteries compartment length x2

535 mm

Batteries compartment width x2

190 mm

Batteries compartment height x2

325 mm

Class

Protection level

IP 23

oudness

63.9 dB (A)

Video

Please accept preferences, statistics, marketing cookies to see this content

Brushes and pad holder

Brushes

Material: PPL <br />Ø brush: 406 mm <br />Ø bristle: 0,6 mm <br />Cod: 48914010

Material: PPL
Ø brush: 406 mm
Ø bristle: 0,6 mm
Cod: 48914010

Material: PPL <br />Ø brush: 406 mm <br />Ø bristle: 0,9 mm <br />Cod: 48914020

Material: PPL
Ø brush: 406 mm
Ø bristle: 0,9 mm
Cod: 48914020

Material: Mix 5 <br />Ø brush: 406 mm <br />Cod: 48914080

Material: Mix 5
Ø brush: 406 mm
Cod: 48914080

Material: abrasive bristles <br />Ø brush: 406 mm <br />Ø bristle: 1,2 mm <br />Cod: 48914070

Material: abrasive bristles
Ø brush: 406 mm
Ø bristle: 1,2 mm
Cod: 48914070

Pad Holder

Pad holder cl green
Ø disc: 385 mm
Ø bristle: 1,2 mm
Cod: 48814020

Batteries and chargers

6V 200Ah5 flat plate battery

6V 210Ah5 tubular battery

6V 210Ah5 GEL tubular battery

Lithium battery 24V 60Ah

24V/35A high frequency lead/gel battery charger

Standard 24V/40A (240Ah) lead battery charger

Standard 24V/30A (180Ah) lead battery charger

Battery charger 24V 70A HF GREEN2 lithium

On-board battery charger assembly

Accessories

Kit trailer

Coupling assembly accessories

Cap with hose for the water loading

EquipmentOptional:

Lithium battery

Download

Use & Maintenance Quick guide Product sheet
