baby

baby
Theoretical working capacity: 1240 m2/h

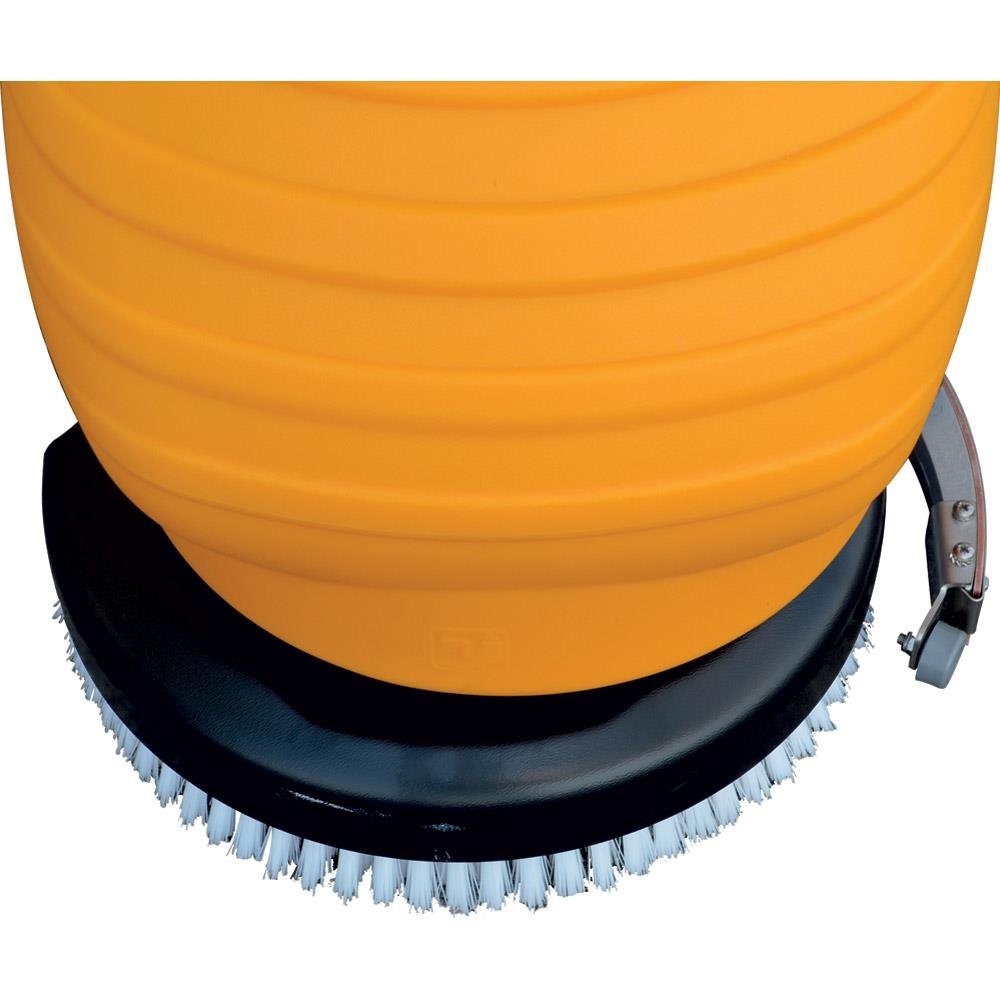

baby is single brush floor cleaning machine with a working width of 35cm, it is battery powered and equipped with an on-board charger
Request information

PRODUCT SPECIFICATIONS

Walk behind machine without traction Walk behind machine without traction
Power supply 24V/28Ah Power supply 24V/28Ah
Cleaning width 345mm Cleaning width 345mm
Brushes pressure 25kg Brushes pressure 25kg
Battery autonomy 60-75min. Battery autonomy 60-75min.
Solution tank / recovery tank 15/16l Solution tank / recovery tank 15/16l
Disc brush 1x345 mm Disc brush 1x345 mm
Brushes speed 170rpm Brushes speed 170rpm

According to 196/03 law, the collected data will be only used to inform customers about Adiatek S.r.l. activities and will be considered secret. Data introduction is optional, but we can’t give services without personal information. Owner of data treatment is Adiatek S.r.l. - Via Monte Pastello 14, 37057 San Giovanni Lupatoto (Verona) - Italy.

baby is single brush battery powered floor cleaning machine with a cleaning width of 35cm and integrated battery charger.

It is suitable to clean even very small areas such as offices, shops, laboratories, tavern, terraces, private pools and every other environments with narrow passages.

The recovery tank can be taken off in order to drain and clean it. The baby machine is provided with a strong squeegee which rubber is taken off through a quick docking. The handlebar can be adjusted and it bends in order to allow an easy transportation. Once the water is drained it is possible to capsize the machine without taking anything off in order to make it less bulky to be stored. In that position also every maintenance intervention on the brush or on the squeegee results easier.


Click here to download the product sheet
- Squeegee width: 410 mm
- Brushes motor: 200 Watt
- Motion system: semiautomatic
- Maximum gradient: 2%
- Suction motor: 200 Watt
- Suction vacuum: 90 mbar
- Machine dimensions: L: 757 mm
  W: 382 mm
  H: 550 mm
- Machine weight (with battery): 65kg
- Battery compartment: L: 270 mm
  W: 215 mm
  H: 190 mm
- Class: I
- Protection level: IP 23
- Loudness: 66.8 dB (A)

Quick guide

There you can download the machine’s quick guide.
We always recommend to read the complete Use&Maintenance manual.


baby/baby plus_IT quick guide

baby/baby plus_EN quick guide

baby/baby plus_F quick guide

baby/baby plus_D quick guide

baby/baby plus_E quick guide



Use & Maintenance manual

There you can download the Use & Maintenance manual.

Use & Maintenance_IT

Uso & Manutenzione_EN

Use & Maintenance_F

Use & Maintenance_D

Use & Maintenance_E
