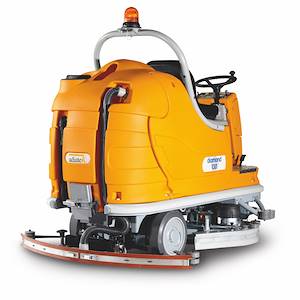

diamond 130

diamond 130
Theoretical working capacity: 9100 m2/h
AC traction wheel model, equipped with four counter rotating disc brushes with a 130cm cleaning width.
Request information

PRODUCT SPECIFICATIONS

Ride-on machine with traction Ride-on machine with traction
Power supply 36V/500Ah Power supply 36V/500Ah
Cleaning width 1300mm Cleaning width 1300mm
Brushes pressure adjustable max. 165kg Brushes pressure adjustable max. 165kg
Battery autonomy 5-7h Battery autonomy 5-7h
Solution tank / recovery tank 235/250l Solution tank / recovery tank 235/250l
Disc brushes 4x355mm Disc brushes 4x355mm
Brushes speed 165rpm Brushes speed 165rpm

According to 196/03 law, the collected data will be only used to inform customers about Adiatek S.r.l. activities and will be considered secret. Data introduction is optional, but we can’t give services without personal information. Owner of data treatment is Adiatek S.r.l. - Via Monte Pastello 14, 37057 San Giovanni Lupatoto (Verona) - Italy.

The diamond 130 model is made following the design of the well-known diamond 100 machine.
This machine is equipped with a new 1300 mm brushes base with a powerful geared motor for each brush and also a new squeegee expressly designed for this model in order to provide even higher performances on the large areas and heavy cleaning situations.

The cleaning power, the comfort to acceed the brushes motors and a very easy maintenance makes the brushes base the main strength of the new diamond 130 machine.

The equipment includes also a strong AC traction wheel which combines great performances while driving over ramps to an easy maintenance, accordingly to the Adiatek’s will to always meet its customer needs.
- Squeegee width: 1550 mm
- Brushes motor: 1920 Watt
- Motion system: automatic
- Maximum gradient: 10%
- Suction motor: 2x570 Watt
- Suction vacuum: 190 mbar
- Machine dimensions: L: 2025 mm
  W: 1400 mm
with rollbar H: 1685 mm
without rollbar H: 1330 mm
- Machine weight w/o battery: 620 kg
- Traction motor: 1400 Watt
- Movement speed: 9 km/h
- Battery compartment: L: 640 mm
  W: 655 mm
  H: 530 mm
- Class: III
- Protection level: IP 23
- Loudness: <70 dB (A)

Quick guide

There you can download the machine’s quick guide.
We always recommend to read the complete Use&Maintenance manual.

diamond 100 quick guide



Use & Maintenance manual

There you can download the Use & Maintenance manual.

Use & Maintenance manual
