ruby 45c

ruby 45c
Theoretical working capacity: 1670 m2/h

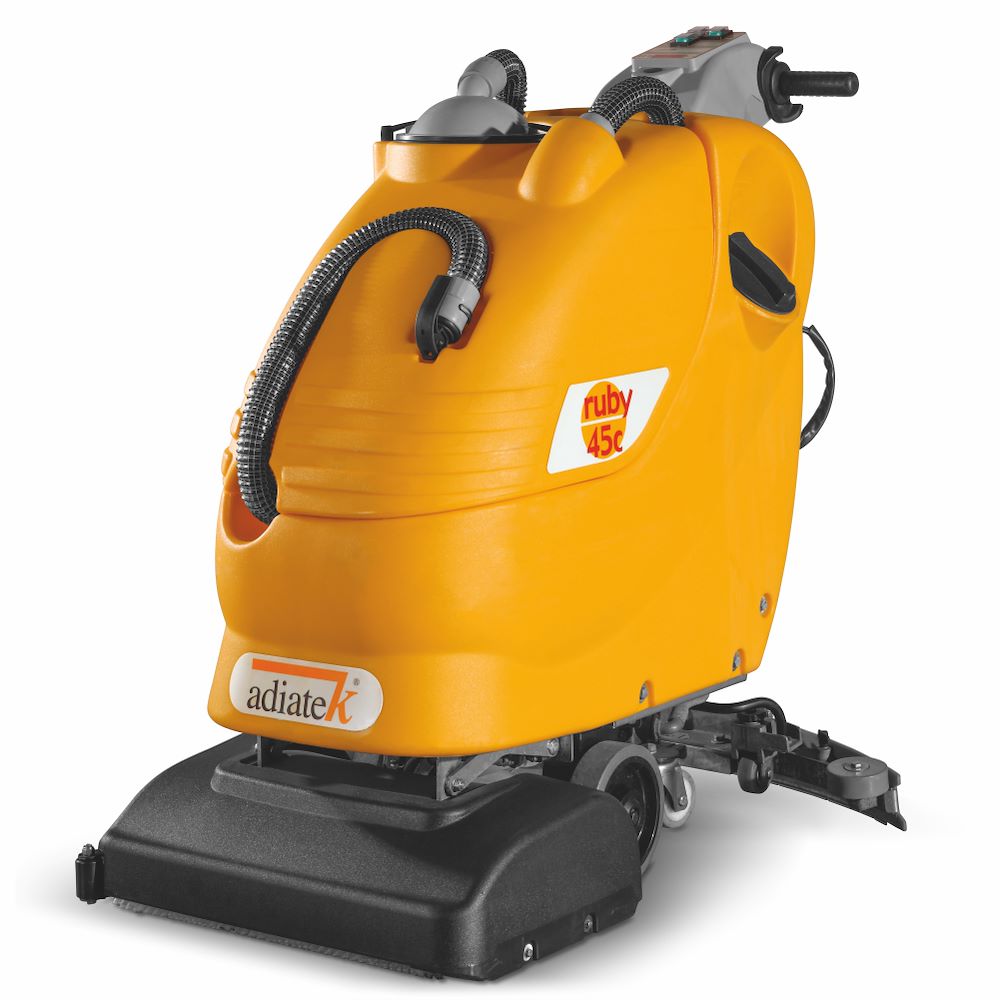

A battery powered model with a 45 cm cleaning path, characterized by two cylindrical brushes turning in the same sense that clean and give traction to the machine.
Request information

PRODUCT SPECIFICATIONS

Walk behind machine without traction Walk behind machine without traction
Power supply 24V/110Ah Power supply 24V/110Ah
Cleaning width 460mm Cleaning width 460mm
Brushes pressure adjustable max.30kg Brushes pressure adjustable max.30kg
Battery autonomy 3-5h Battery autonomy 3-5h
Solution tank / recovery tank 40/45 l Solution tank / recovery tank 40/45 l
Cylindrical brushes 2x95mm Cylindrical brushes 2x95mm
Brushes speed 950rpm Brushes speed 950rpm

According to 196/03 law, the collected data will be only used to inform customers about Adiatek S.r.l. activities and will be considered secret. Data introduction is optional, but we can’t give services without personal information. Owner of data treatment is Adiatek S.r.l. - Via Monte Pastello 14, 37057 San Giovanni Lupatoto (Verona) - Italy.

It is a battery powered floor cleaning machine with a 45cm cleaning width brush base which has two rotating brush that help also the machine for the traction.

This scrubber is particularly indicated for all the small environments, for all the situations of fast maintenance cleaning and for floors with large joints.

Brushes are very easy to maintain and it is the best compromise between high quality and a convenient price.
Click here to download the product sheet
- Squeegee width: 770 mm
- Brushes motor: 500 Watt
- Motion system: semiautomatic
- Maximum gradient: 2%
- Suction motor: 570 Watt
- Suction vacuum: 120 mbar
- Machine dimensions: L: 1090 mm
W: 548 mm
H: 1053 mm
- Machine weight w/o battery: 71 kg
- Battery compartment: L: 350 mm
W: 342 mm
H: 295 mm
- Class: III
- Protection level: IP 23
- Loudness: <70 dB (A)

Quick guide

Da qui potete scaricare la scheda di utilizzo rapido della macchina.
Si raccomanda sempre la lettura del manuale completo.

ruby 45c_IT quick guide

ruby 45c_EN quick guide

ruby 45c_F quick guide

ruby 45c_D quick guide

ruby 45c_E quick guide



Use & Maintenance manual

There you can download the Use & Maintenance manual.

Use & Maintenance_IT

Use & Maintenance_EN

Use & Maintenance_D

Use & Maintenance_D

Use & Maintenance_E
