sapphire 85

sapphire 85
Theoretical working capacity: 5200 m2/h

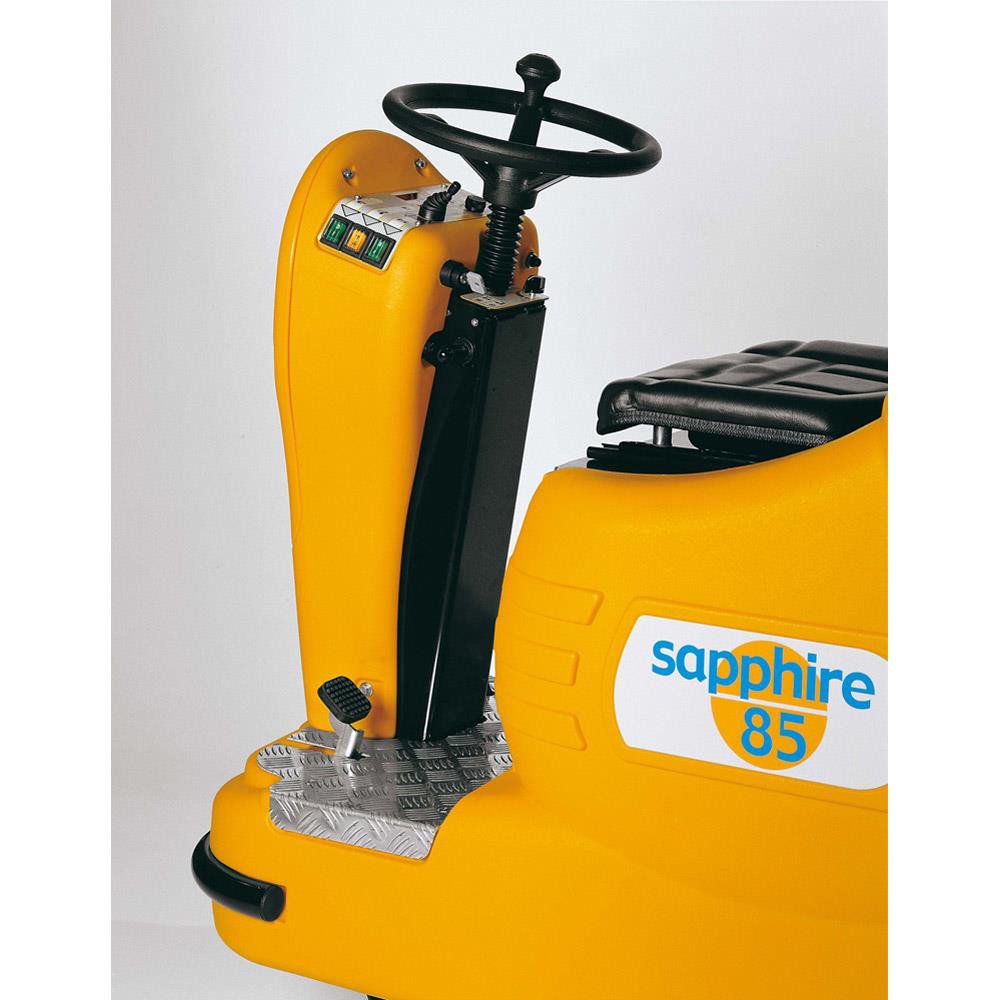

Medium-size ride-on machine with two counter-rotating disc brushes available in a 85 cm cleaning width version.
Request information

PRODUCT SPECIFICATIONS

Ride-on machine with traction Ride-on machine with traction
Power supply 36V/240Ah Power supply 36V/240Ah
Cleaning width 850mm Cleaning width 850mm
Brushes pressure adjustable max.85kg Brushes pressure adjustable max.85kg
Battery autonomy 4-6h Battery autonomy 4-6h
Solution tank / recovery tank 110/120l Solution tank / recovery tank 110/120l
Disc brushes 2x430mm Disc brushes 2x430mm
Brushes speed 162rpm Brushes speed 162rpm

According to 196/03 law, the collected data will be only used to inform customers about Adiatek S.r.l. activities and will be considered secret. Data introduction is optional, but we can’t give services without personal information. Owner of data treatment is Adiatek S.r.l. - Via Monte Pastello 14, 37057 San Giovanni Lupatoto (Verona) - Italy.

Medium-size ride-on machine with two counter-rotating disc brushes available in a 85 cm cleaning width version.
Simple control panel, easy adjustment of the brushes pressure onto the floor with a maximum value of respectively 85 kg.

The scrubber is particularly indicated for slippery surfaces and very dirty floors.


Click here to download the product sheet
- Squeegee width: 1070 mm
- Brushes motor: 1125 Watt
- Motion system: automatic
- Maximum gradient: 10%
- Suction motor: 570 Watt
- Suction vacuum: 190 mbar
- Machine dimensions:

with rollbar
without rollbar
L: 1660 mm
W: 900 mm
H: 1690 mm
H: 1285 mm
- Machine weight w/o battery: 313 kg
- Traction motor: 600 Watt
- Movement speed: 6.1 km/h
- Battery compartment: L: 840 mm
W: 380 mm
H: 395 mm
- Class: III
- Protection level: IP 23
- Loudness: 67.1 dB (A)

Quick guide

There you can download the machine’s quick guide.
We always recommend to read the complete Use&Maintenance manual.


sapphire 85_IT quick guide

sapphire 85_EN quick guide

sapphire 85_F quick guide

sapphire 85_D quick guide

sapphire 85_E quick guide



Use & Maintenance manual

There you can download the Use & Maintenance manual.

Use & Maintenance manual
