baby 43 lithium

baby 43 lithium
Theoretical working capacity: 1500 m2/h
The great tank capacity added to the reduced external dimensions allows to have a machine that has both a big working autonomy and the possibility to work also in very small environments.
Request information

PRODUCT SPECIFICATIONS

Walk behind machine without traction Walk behind machine without traction
Power supply 24V/40Ah5 Power supply 24V/40Ah5
Cleaning width 430mm Cleaning width 430mm
Brushes pressure 35kg Brushes pressure 35kg
Battery autonomy 105min Battery autonomy 105min
Solution tank / recovery tank 23/23l Solution tank / recovery tank 23/23l
Disc brush 1x430mm Disc brush 1x430mm
Brushes speed 150rpm Brushes speed 150rpm

According to 196/03 law, the collected data will be only used to inform customers about Adiatek S.r.l. activities and will be considered secret. Data introduction is optional, but we can’t give services without personal information. Owner of data treatment is Adiatek S.r.l. - Via Monte Pastello 14, 37057 San Giovanni Lupatoto (Verona) - Italy.

The great tank capacity added to the reduced external dimensions allows the machine to have both a big working autonomy and the possibility to work also in very small environments.

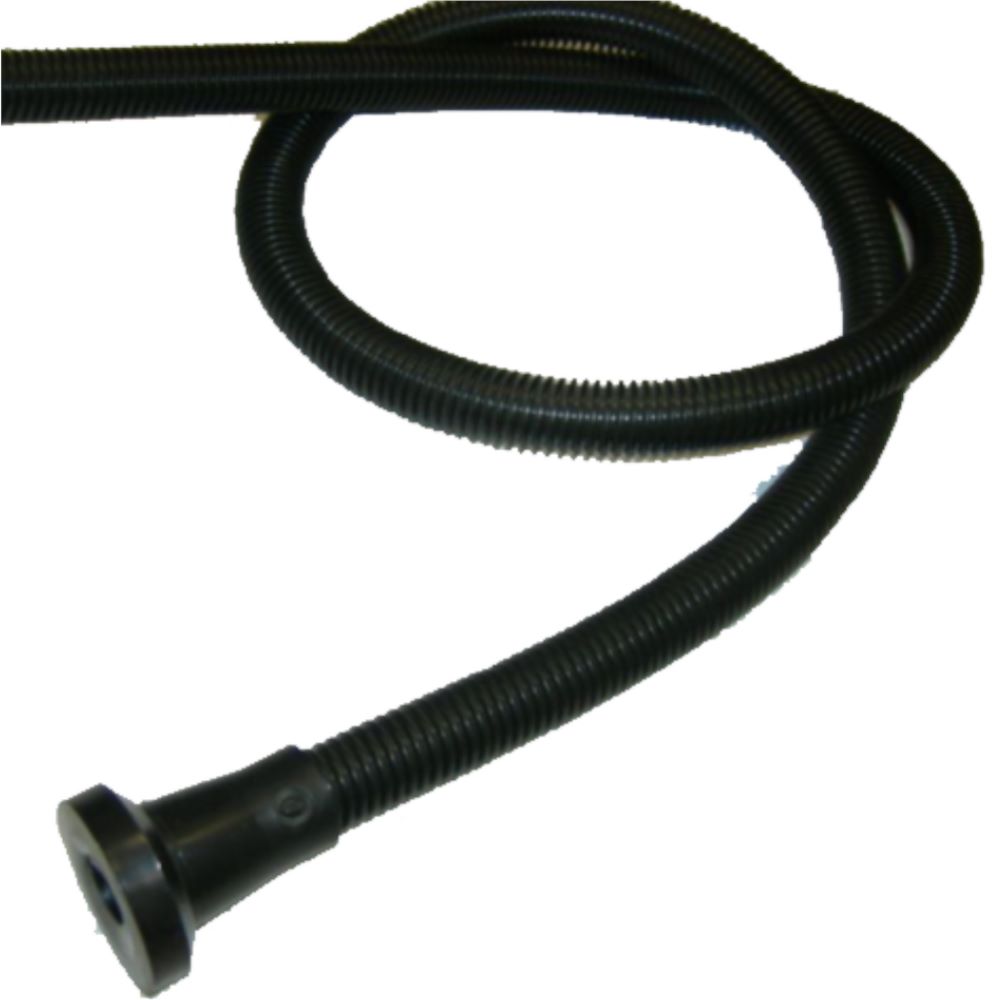

The recovery tank can be drained using the appropriate exhaust hose.

The distinctive element is represented by the squeegee as its system allows it to rotate completely, both right and left, enabling the drying even during reverse movements.

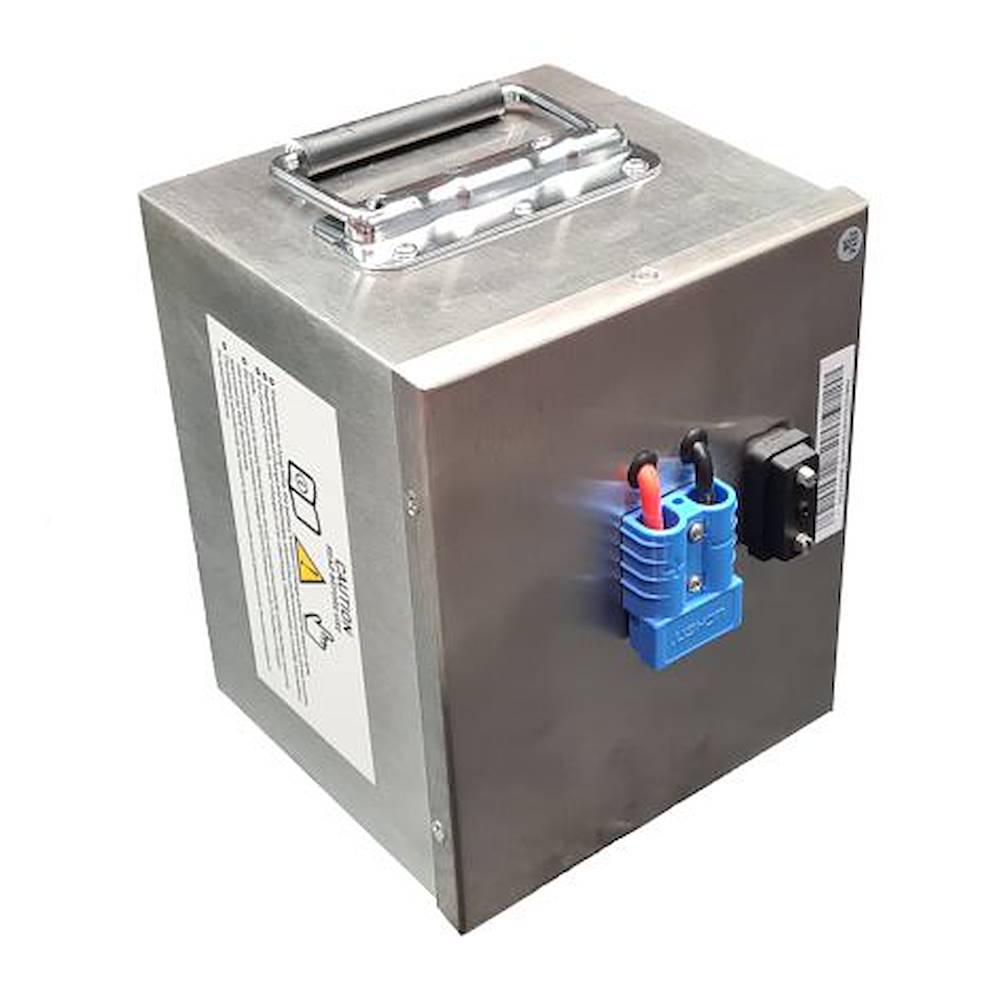

This version is equipped with a 40Ah5 lithium battery that makes possible for the machine to ensure an operating time of more than one hour and a half in normal working conditions.
Thanks to the very low self-discharge level also the safety related problems are reduced even when it is not possible to promptly charge the battery.
The battery also ensure more than 1000 charging cycles which, in our situation, could be close to the lifespan of the machine itself.
Moreover, this lithium battery ensures a weight reduction of more than 20kg compared to the standard baby 43 machine.

Click here to download the product sheet
- Squeegee width: 510 mm
- Brushes motor: 450 Watt
- Motion system: semiautomatic
- Maximum gradient: 2%
- Suction motor: 300 Watt
- Suction vacuum: 82 mbar
- Machine dimensions: L: 793 mm
  W: 480 mm
  H: 600 mm
- Machine weight (with battery): 65 kg
- Battery compartment: L: 207 mm
  W: 346 mm
  H: 210 mm
- Class: I
- Protection level: IP 23
- Loudness: <70 dB (A)

Baby 43 scrubber, 360° squeegee rotation patent

In 2013 Adiatek designed and assembled the Baby 43 machine and in 2015 got the patent that the company requested for the rotating squeegee.

Adiatek patented the originality of the squeegee rotation that can be moved in front of the brush in order to dry the floor even going backwards.This rotation can be operated without the help of an external instrumentation.

The Baby 43 machine got patented also for the squeegee lifting system that works through an equipment completely external from the squeegee.

As it can be seen from the picture, the lifting of the squeegee can be summarized in two simple stages:

1. side movement of the brush respectively to the moving
2. direction backwards moving until a complete rotation of the squeegee has been made.



Quick guide

There you can download the machine’s quick guide.
We always recommend to read the complete Use&Maintenance manual.


baby 43 Li_IT quick guide

baby 43 Li_EN quick guide

baby 43 Li_F quick guide

baby 43 Li_D quick guide

baby 43 Li_E quick guide



Use & Maintenance manual


Use & Maintenance_IT

Use & Maintenance_EN

Use & Maintenance_F

Use & Maintenance_D

Use & Maintenance_E
