baby plus Li

baby plus Li
Theoretical working capacity: 1240 m2/h
baby plus Li is single brush floor cleaning machine with a working width of 35cm, it is powered by a 24V 40 Ah5 lithium battery and it is equipped with an on-board battery charger
Request information

PRODUCT SPECIFICATIONS

Walk behind machine without traction Walk behind machine without traction
Power supply 24V/40Ah Power supply 24V/40Ah
Cleaning width 345mm Cleaning width 345mm
Brushes pressure 25kg Brushes pressure 25kg
Battery autonomy 2h + power cable Battery autonomy 2h + power cable
Solution tank / recovery tank 15/16l Solution tank / recovery tank 15/16l
Disc brush 1x345 mm Disc brush 1x345 mm
Brushes speed 170rpm Brushes speed 170rpm

According to 196/03 law, the collected data will be only used to inform customers about Adiatek S.r.l. activities and will be considered secret. Data introduction is optional, but we can’t give services without personal information. Owner of data treatment is Adiatek S.r.l. - Via Monte Pastello 14, 37057 San Giovanni Lupatoto (Verona) - Italy.

baby plus Li is a single brush floor cleaning machine with a cleaning width of 35cm powered by a 24V 40 Ah5 lithium battery, it has also its incorporated battery charger. It is suitable to clean even very small areas such as offices, shops, laboratories, tavern, terraces, private pools and every other environments with narrow passages.

Thanks to the large battery autonomy the machine is allowed to work for more than 2 hours and then it is possible to plug the 20m power cable to keep working while the batteries are charging.

The recovery tank can be taken off in order to drain and clean it.

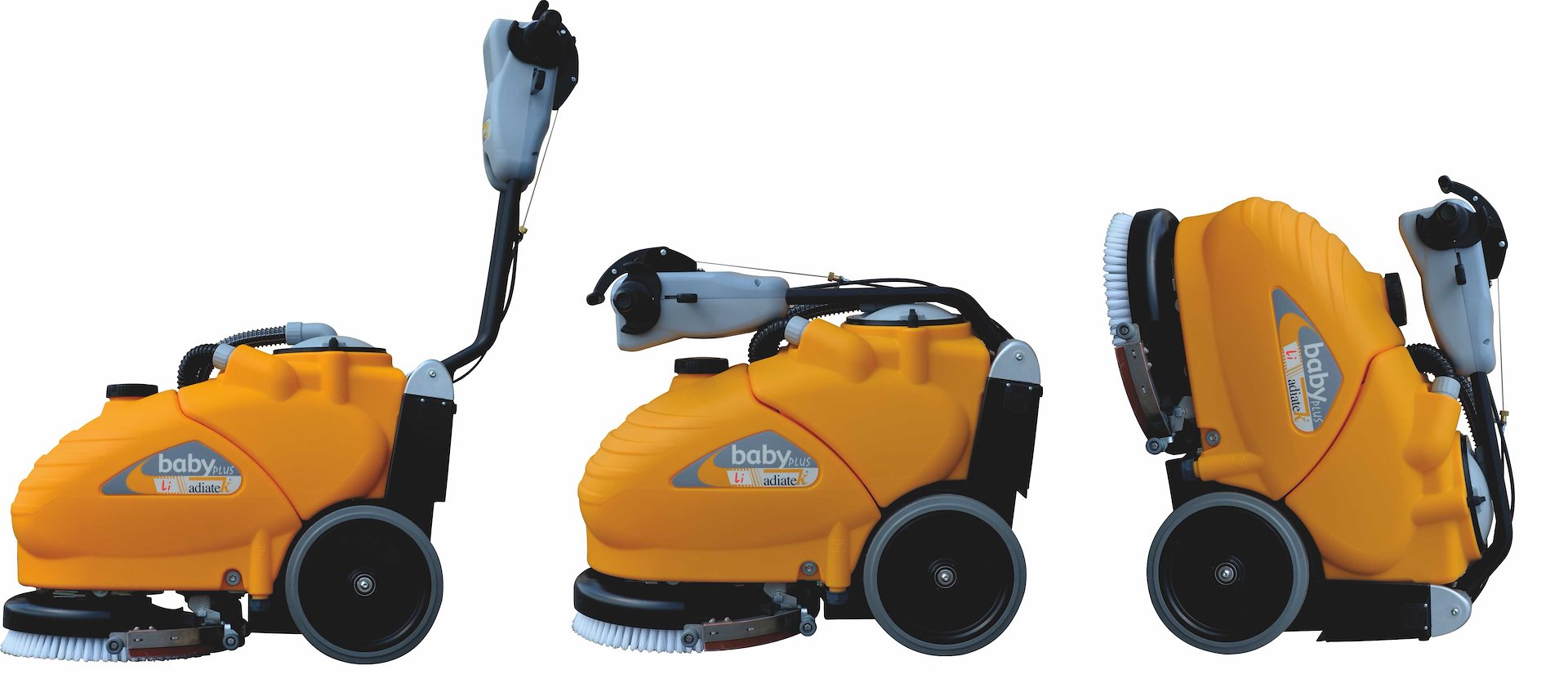

The baby plus Li is provided with a strong squeegee which rubber is taken off through a quick docking. The handlebar can be adjusted and it bends in order to allow an easy transportation.By draining the water from the tanks it is possible to bend the machine without taking anything off making it less bliky when stored. In that position even every maintenance operation on the brush or on the squeegee is easier to do.

Click here to download the product sheet
- Squeegee width: 410 mm
- Brushes motor: 200 Watt
- Motion system: semiautomatic
- Maximum gradient: 2%
- Suction motor: 200 Watt
- Suction vacuum: 90 mbar
- Machine dimensions: L: 757 mm
  H: 550 mm
  W: 415 mm
- Machine weight (with battery): 53kg
- Battery compartment: L: 257 mm
  H: 215 mm
  W: 205 mm
- Class: I
- Protection level: IP 23
- Loudness: 66.8 dB (A)

Quick guide

There you can download the machine’s quick guide.
We always recommend to read the complete Use&Maintenance manual.


baby plus li_IT quick guide

baby plus li_EN quick guide

baby plus li_F quick guide

baby plus li_D quick guide

baby plus li_E quick guide



Use & Maintenance manual

There you can download the Use & Maintenance manual.

Use & Maintenance_IT

Use & Maintenance_EN

Use & Maintenance__F

Use & Maintenance_D

Use & Maintenance_E
