ruby 48bl

ruby 48bl
Theoretical working capacity: 1700 m2/h
It is the battery powered, single brush version, with a 48 cm cleaning path.
Request information

PRODUCT SPECIFICATIONS

Walk behind machine without traction Walk behind machine without traction
Power supply 24V/110Ah Power supply 24V/110Ah
Cleaning width 485mm Cleaning width 485mm
Brushes pressure 20kg Brushes pressure 20kg
Battery autonomy 2-4h Battery autonomy 2-4h
Solution tank / recovery tank 40/45 l Solution tank / recovery tank 40/45 l
Disc brush 1x485 mm Disc brush 1x485 mm
Brushes speed 155rpm Brushes speed 155rpm

According to 196/03 law, the collected data will be only used to inform customers about Adiatek S.r.l. activities and will be considered secret. Data introduction is optional, but we can’t give services without personal information. Owner of data treatment is Adiatek S.r.l. - Via Monte Pastello 14, 37057 San Giovanni Lupatoto (Verona) - Italy.

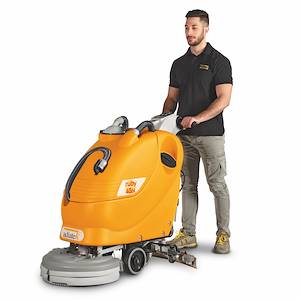

ruby 48bl is a single brush floor cleaning machine optimized in its price and performances.
The machine keeps all the main features of the ruby series and its large tanks capacity and the great agility makes it a machine suitable for all kinds of environments when a great working efficiency combined with a low price is required.
Few intuitive buttons make the ruby 48bl easy to use and to maintain even for an inexperienced operator.

Click here to download the product sheet
- Squeegee width: 770 mm
- Brushes motor: 350 Watt
- Motion system: semiautomatic
- Maximum gradient: 2%
- Suction motor: 450 Watt
- Suction vacuum: 120 mbar
- Machine dimensions: L: 1195 mm
  W: 530 mm
  H: 1053 mm
- Machine weight w/o battery: 66 kg
- Battery compartment: L: 350 mm
  W: 342 mm
  H: 295 mm
- Class: III
- Protection level: IP 23
- Loudness: <70 dB (A)

Quick guide

There you can download the machine’s quick guide.
We always recommend to read the complete Use&Maintenance manual.

ruby 48bl_IT quick guide

ruby 48bl_EN quick guide

ruby 48bl_F quick guide

ruby 48bl_D quick guide

ruby 48bl_E quick guide


Use & Maintenance manual

There you can download the Use & Maintenance manual.

Use & Maintenance_IT

Use & Maintenance_EN

Use & Maintenance_F

Use & Maintenance_D

Use & Maintenance_E
