Quartz 70s
Ride-on scrubbers

Scrubber Quartz 70s

Ride-on scrubber Quartz 70s

Theoretical productivity: 4200 m2/h
Characteristics
Ride-on machine with traction
Ride-on machine with traction
Power supply 24V/210Ah
Power supply 24V/210Ah
Cleaning width 700mm
Cleaning width 700mm
Brushes pressure adjustable - - -
Brushes pressure adjustable - - -
Battery autonomy 4-5h
Battery autonomy 4-5h
Solution tank / recovery tank 100/106l
Solution tank / recovery tank 100/106l
Cylindrical brushes 2x150mm
Cylindrical brushes 2x150mm
Brushes speed 785rpm
Brushes speed 785rpm
Technical data
Squeegee width
965 mm
Brushes motor
2x350 Watt
Motion system
automatic
Maximum gradient
10%
Suction motor
570 Watt
Suction vacuum
160 mbar
Machine length
1540 mm
Machine width
770 mm
Machine height
1388 mm
Machine weight w/o battery
218 kg
Traction motor
500 Watt
Maximum forward speed
5 km/h
Batteries compartment length x2
535 mm
Batteries compartment width x2
190 mm
Batteries compartment height x2
325 mm
Class
|
Protection level
IP 23
oudness
63.9 dB (A)
Brushes and pad holder
Brushes
Material: PPL <br />Ø brush: 406 mm <br />Ø bristle: 0,6 mm <br />Cod: 48914010
Material: PPL
Ø brush: 406 mm
Ø bristle: 0,6 mm
Cod: 48914010
Material: PPL <br />Ø brush: 406 mm <br />Ø bristle: 0,9 mm <br />Cod: 48914020
Material: PPL
Ø brush: 406 mm
Ø bristle: 0,9 mm
Cod: 48914020
Material: Mix 5 <br />Ø brush: 406 mm <br />Cod: 48914080
Material: Mix 5
Ø brush: 406 mm
Cod: 48914080
Material: abrasive bristles <br />Ø brush: 406 mm <br />Ø bristle: 1,2 mm <br />Cod: 48914070
Material: abrasive bristles
Ø brush: 406 mm
Ø bristle: 1,2 mm
Cod: 48914070
Pad Holder
Pad holder cl green <br />Ø disc: 385 mm <br />Ø bristle: 1,2 mm <br />Cod: 48814020
Pad holder cl green
Ø disc: 385 mm
Ø bristle: 1,2 mm
Cod: 48814020
Batteries and chargers
6V 200Ah5 flat plate battery
6V 200Ah5 flat plate battery

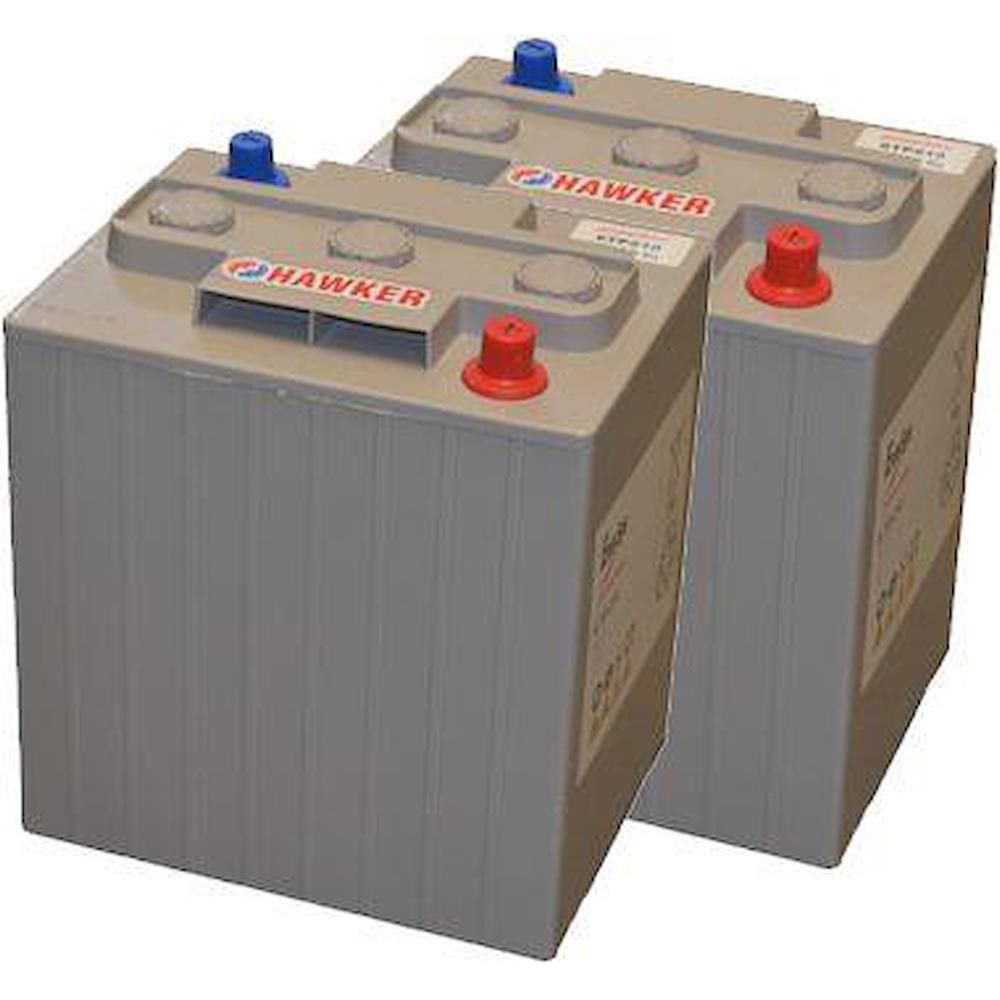

Tubolar battery 6V 210Ah5
Tubolar battery 6V 210Ah5

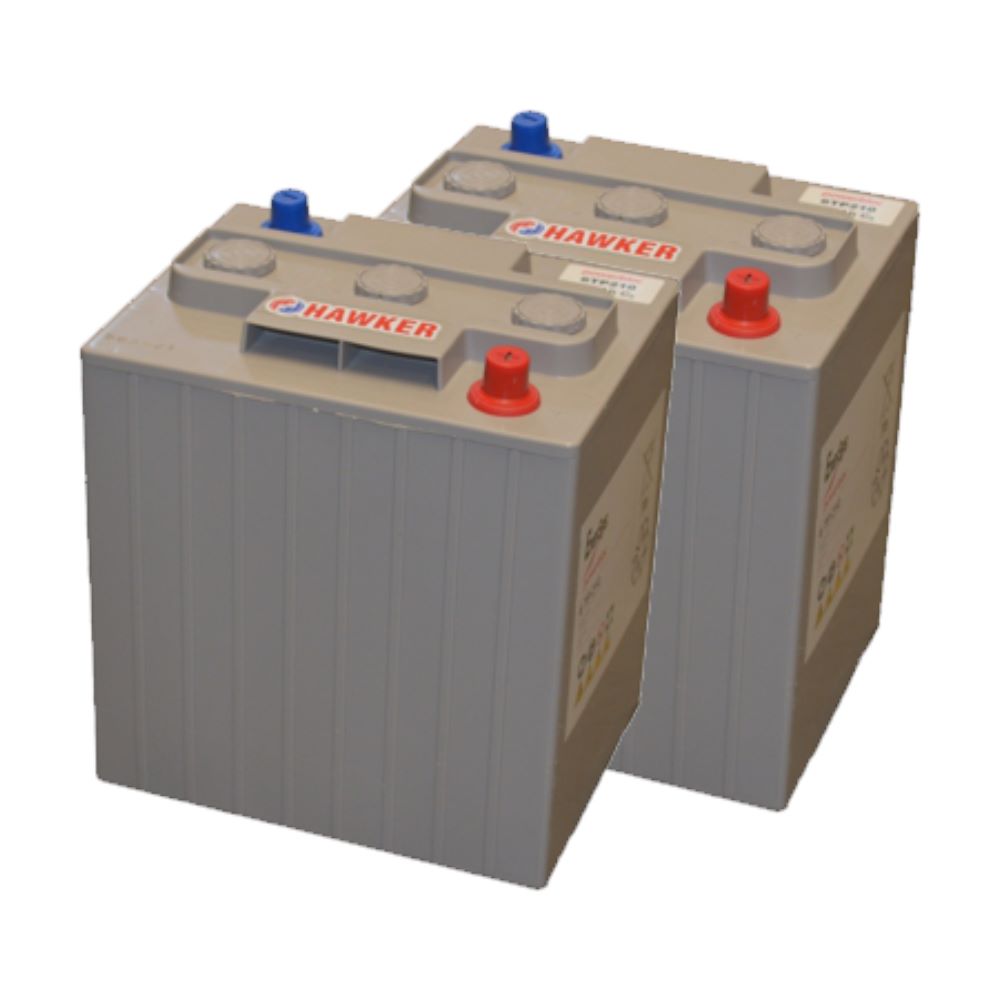

6V 210Ah5 GEL tubular battery
6V 210Ah5 GEL tubular battery

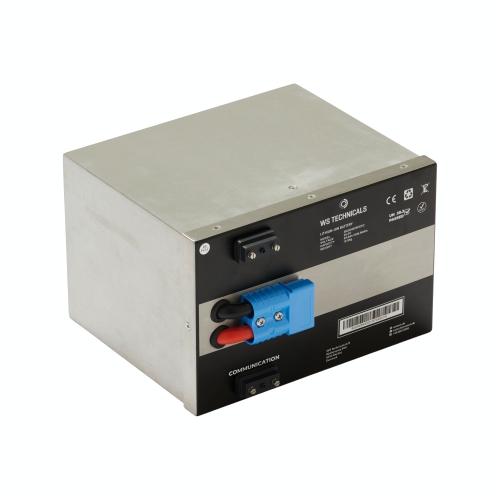

Lithium battery 24V 60Ah
Lithium battery 24V 60Ah
24V/35A high frequency lead/gel battery charger
24V/35A high frequency lead/gel battery charger

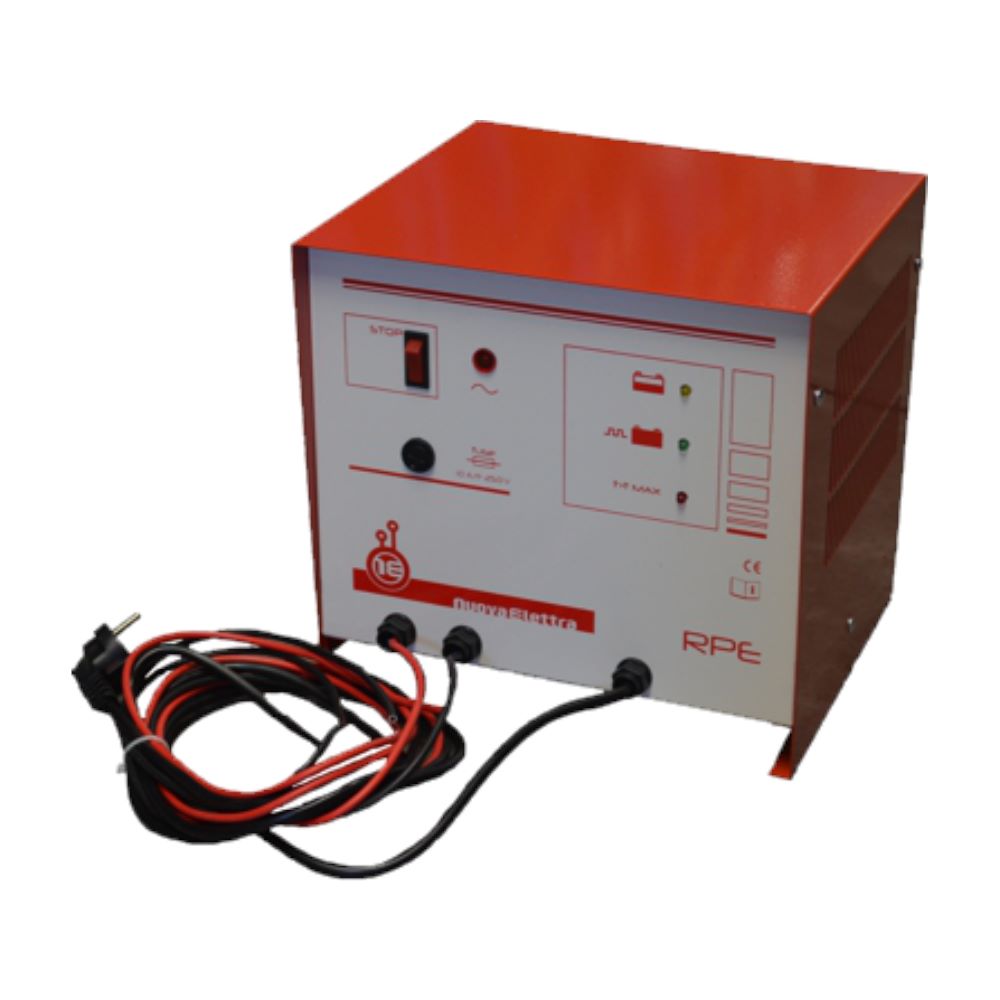

Standard 24V/40A (240Ah) lead battery charger
Standard 24V/40A (240Ah) lead battery charger
Standard 24V/30A (180Ah) lead battery charger
Standard 24V/30A (180Ah) lead battery charger

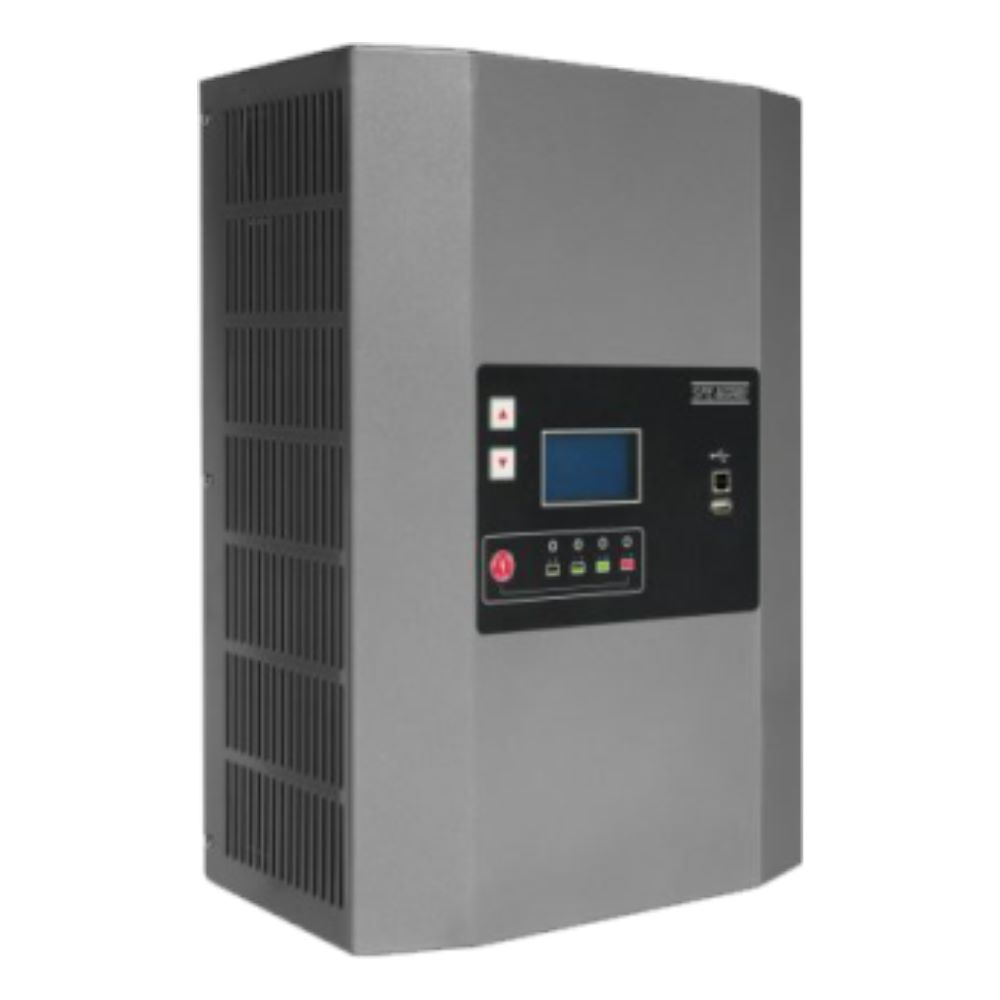

Battery charger 24V 70A HF GREEN2 lithium
Battery charger 24V 70A HF GREEN2 lithium

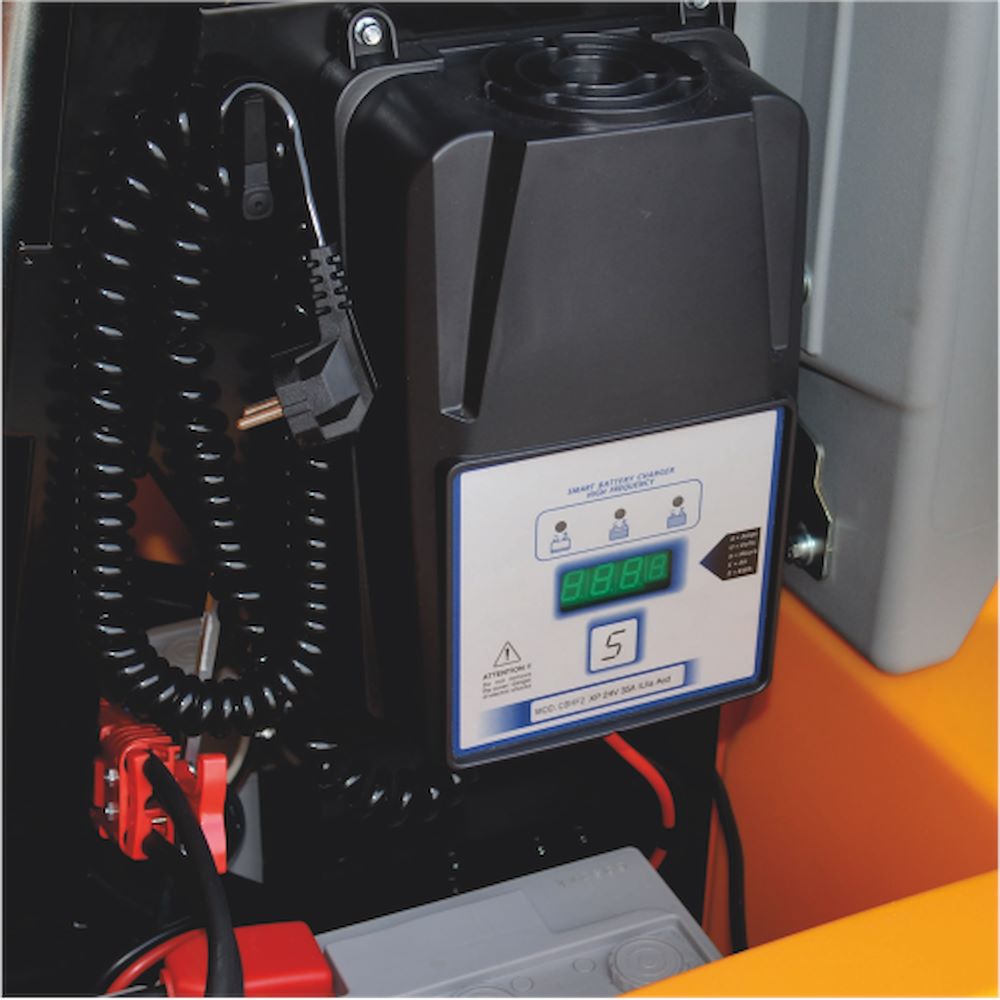

On-board battery charger assembly
On-board battery charger assembly
Accessories

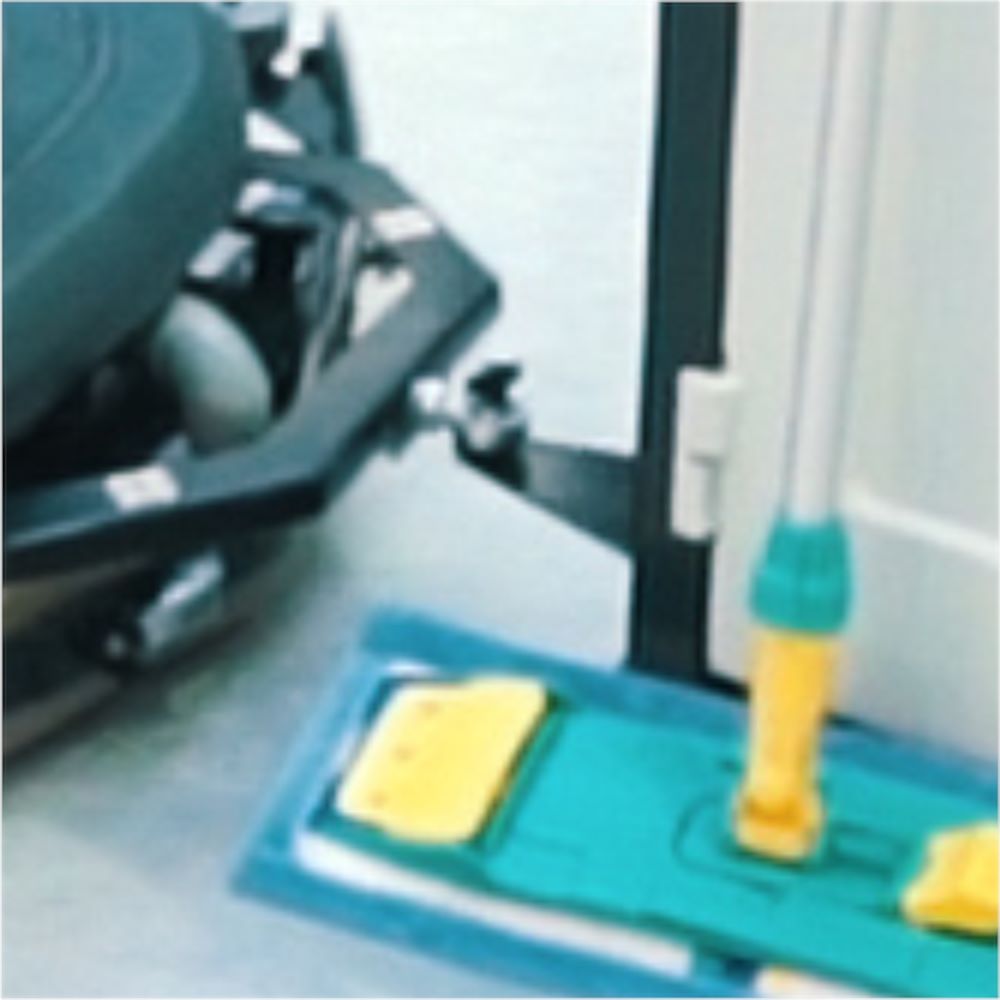

Kit trailer
Kit trailer

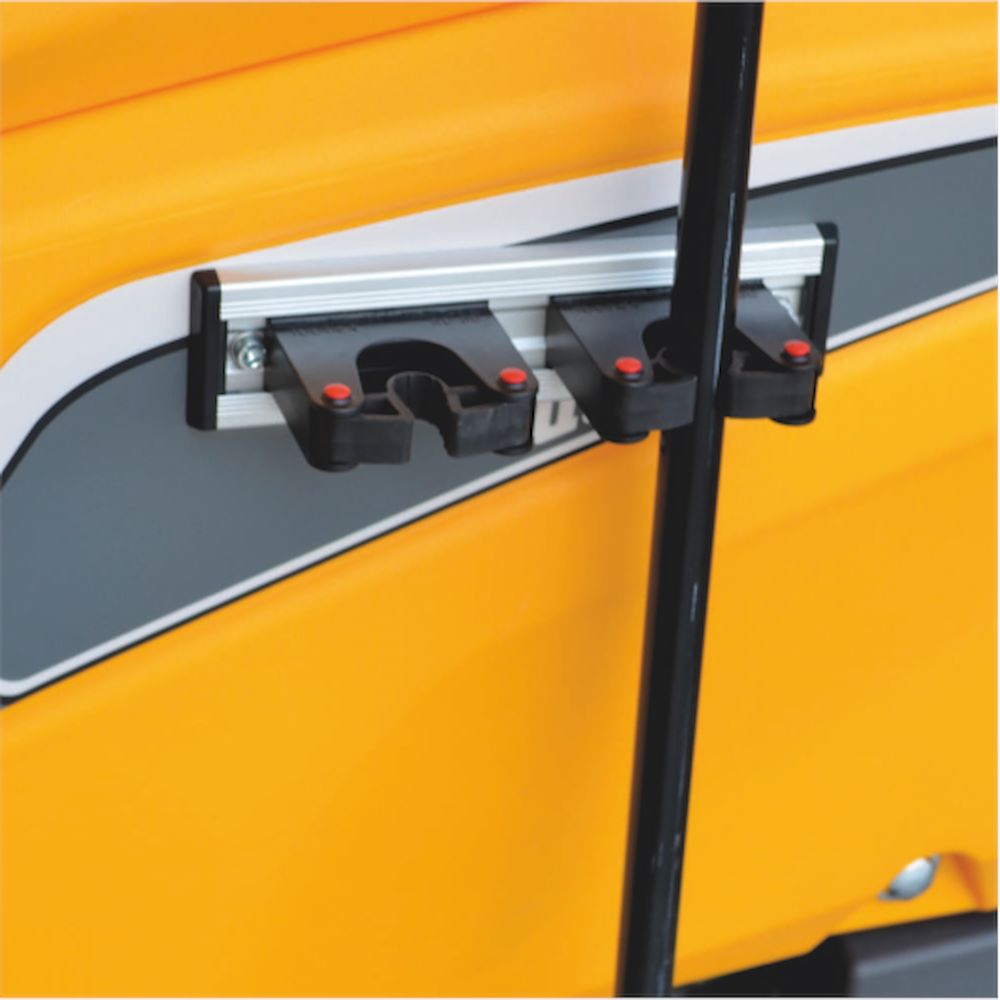

Coupling assembly accessories
Coupling assembly accessories
Cap with hose for the water loading
Cap with hose for the water loading
Declarations
REACH+
REACH
RoHS+
RoHS
CE+
CE
