Quartz

Quartz 66

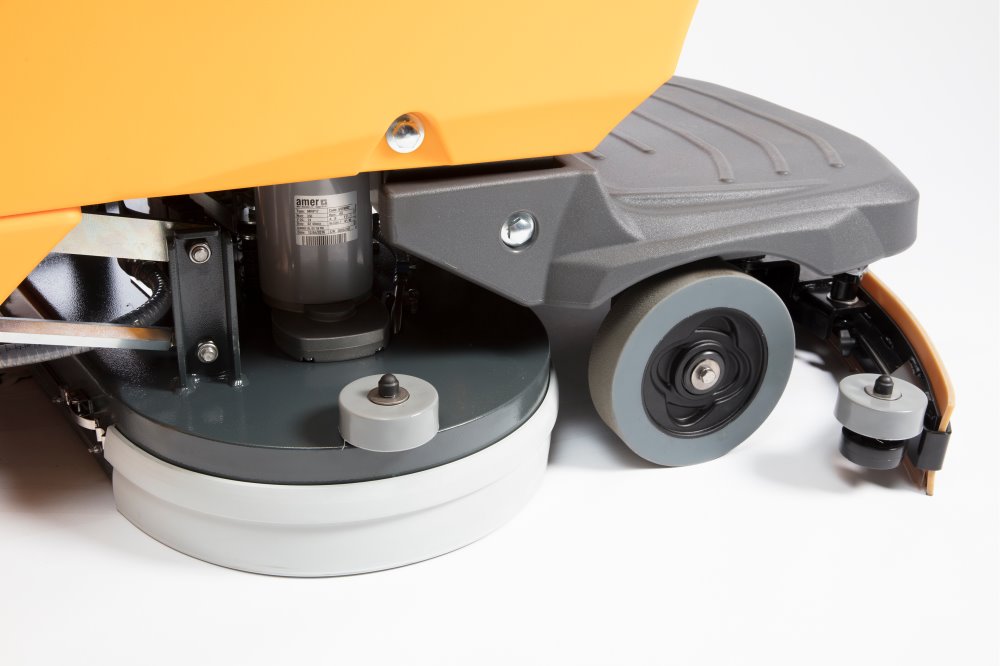

The new generation Adiatek quartz scrubber machine provides a flexible and compact solution from medium to big size areas with a working capacity up to 4710 m2 /h. Deliver the comfort and performance of a ride on machine cleaning with unmatched maneuverability and visibility. The battery powered stand-up scrubber offers unbeatable cleaning performances featuring two 350W brush motors. This floor scrubbers is provided with a tough roto-molded polyethylene body and a 100 liters solution tank. The detergent solution flow rate can be adjusted directly from the dashboard in order to be able to switch from high to low without stopping from cleaning.

- Total Ergonomic design in order to be productive and easy to get on and off.

- 360 degrees visibility and total access around the machine.

- Large solution tank capacity and easy control of the detergent solution flow rate.

- Automatic cut out if operator steps off the machine.

- Large recovery tank opening designed for an easy internal cleaning.

Theoretical productivity: 4110 m2/h
Caratteristiche
Ride-on machine with traction
Ride-on machine with traction
Power supply 24V/210Ah
Power supply 24V/210Ah
Cleaning width 685mm
Cleaning width 685mm
Brushes pressure adjustable max.57kg
Brushes pressure adjustable max.57kg
Battery autonomy 4-5h
Battery autonomy 4-5h
Solution tank / recovery tank 100/106l
Solution tank / recovery tank 100/106l
Disc brushes 2x355mm
Disc brushes 2x355mm
Brushes speed 160rpm
Brushes speed 160rpm
Technical data
Squeegee width
900 mm
Brushes motor
2x350 Watt
Motion system
automatic
Maximum gradient
10%
Suction motor
570 Watt
Suction vacuum
160 mbar
Machine length
1540 mm
Machine width
765 mm
Machine height
1388 mm
Machine weight w/o battery
213 kg
Traction motor
500 Watt
Maximum forward speed
5 km/h
Batteries compartment length x2
535 mm
Batteries compartment width x2
190 mm
Batteries compartment height x2
325 mm
Class
|
Protection level
IP 23
oudness
63.9 dB (A)
Video
Brushes and pad holder
Brushes
Material: PPL <br />Ø brush: 355 mm <br />Ø bristle: 0,6 mm <br />Cod: 48914030
Material: PPL
Ø brush: 355 mm
Ø bristle: 0,6 mm
Cod: 48914030
Material: PPL <br />Ø brush: 355 mm <br />Ø bristle: 0,9 mm <br />Cod: 48914040
Material: PPL
Ø brush: 355 mm
Ø bristle: 0,9 mm
Cod: 48914040
Material: Mix 5 <br />Ø brush: 355 mm <br />Cod: 48914060
Material: Mix 5
Ø brush: 355 mm
Cod: 48914060
Material: abrasive bristles <br />Ø brush: 355 mm <br />Ø bristle: 1,2 mm <br />Cod: 48914050
Material: abrasive bristles
Ø brush: 355 mm
Ø bristle: 1,2 mm
Cod: 48914050
Pad Holder
Pad holder cl green <br />Ø disc: 330 mm <br />Cod: 48803030
Pad holder cl green
Ø disc: 330 mm
Cod: 48803030
Batteries and chargers
6V 200Ah5 flat plate battery
6V 200Ah5 flat plate battery
Tubolar battery 6V 210Ah5
Tubolar battery 6V 210Ah5
6V 210Ah5 GEL tubular battery
6V 210Ah5 GEL tubular battery
Lithium battery 24V 60Ah
Lithium battery 24V 60Ah
24V/35A high frequency lead/gel battery charger
24V/35A high frequency lead/gel battery charger
Standard 24V/40A (240Ah) lead battery charger
Standard 24V/40A (240Ah) lead battery charger
Standard 24V/30A (180Ah) lead battery charger
Standard 24V/30A (180Ah) lead battery charger
Battery charger 24V 70A HF GREEN2 lithium
Battery charger 24V 70A HF GREEN2 lithium
On-board battery charger assembly
On-board battery charger assembly
Accessories
Kit trailer
Kit trailer
Coupling assembly accessories
Coupling assembly accessories
Cap with hose for the water loading
Cap with hose for the water loading
EcoGreenIt can be equipped with:
TelematicsIs compatible with:
